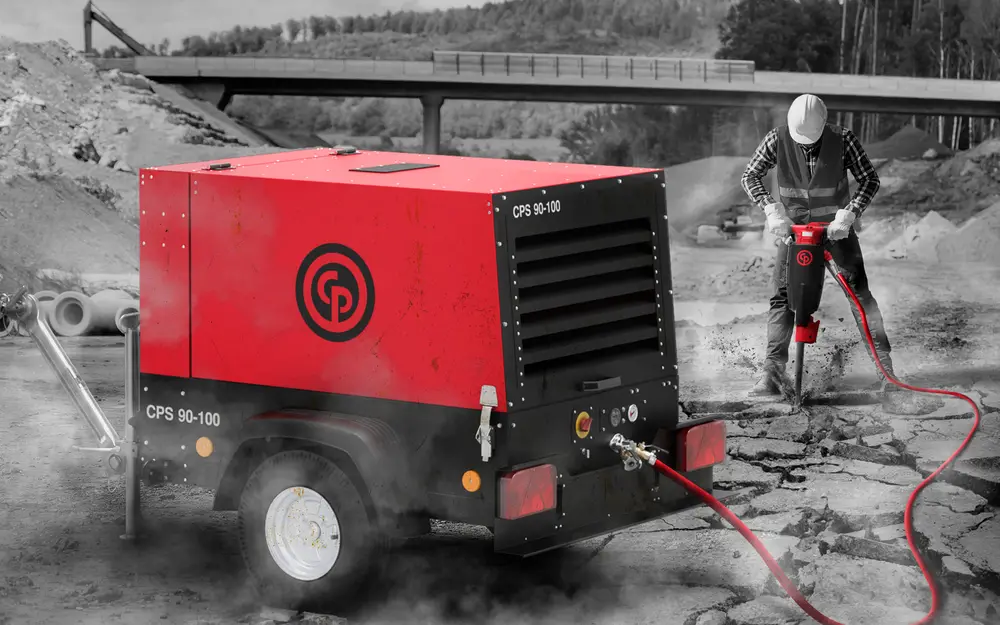

Compact Class
95 to 180 CFM, with liquid-cooled Kubota or Kohler diesels. Easy to tow behind a pickup. For utility crews, small blasting jobs, and running one or two handheld tools.
CPS 110, T110, CPS 175, CPS 185
Chicago Pneumatic Portable Diesel Air Compressors for Sale in Southern California and Las Vegas
We’re an authorized Chicago Pneumatic distributor. We sell towable diesel air compressors from 95 to 1600 CFM for sandblasting, roadwork, pipeline and utility jobs across Los Angeles, Orange County, the Inland Empire and Las Vegas. We also service compressed air systems.
Pictured: a Chicago Pneumatic CPS 300-100 portable diesel compressor powering a breaker on a jobsite.
The Range
Portable Diesel Compressors by Class
Chicago Pneumatic portable diesels run from 95 to 1600 CFM, mostly at 100 to 200 PSI, with high pressure models up to 508 PSI. Tell us the job and we’ll match the airflow, pressure and engine to it.
Mid Range
238 to 400 CFM at 100 to 200 PSI, with Kubota or Kohler diesels. For all-day sandblasting, surface prep and running several tools at once. The CPS 250 is available with an aftercooler and water separator for drier air.
CPS 250, CPS 400

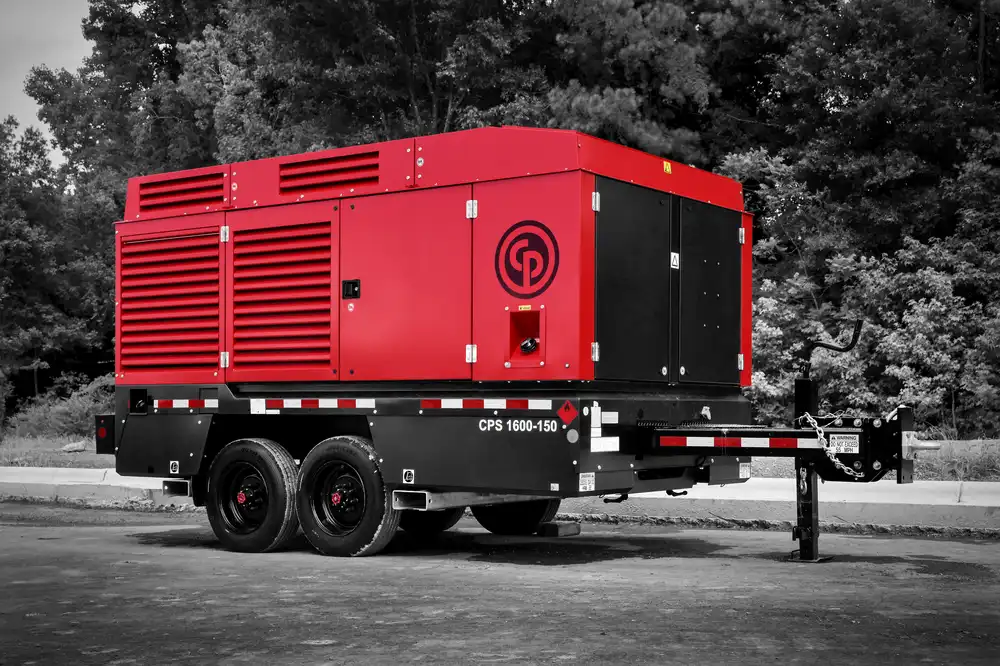

Large and High Pressure
650 to 1600 CFM, with John Deere, Cummins or Scania engines, and high pressure models up to 508 PSI. For pipeline, drilling and large jobs where one machine supplies the whole site.
CPS 650, 750, 900, 1150, 1400, 1600
Specifications
Portable diesel compressor specs and part numbers
Specifications vary by engine and pressure variant. Where a configuration is marked for confirmation, request the current supplier specification for the listed part number before selecting equipment.
Every model in the current US range, with part number, EPA tier, airflow and pressure range. Where a model shows more than one flow, each flow goes with the pressure in the same position.
Scroll to see all columns. Keyboard: focus the table area and use the arrow keys.
| Model | Tier | Flow (CFM) | At PSI | Pressure range | Engine | Part no. |
|---|---|---|---|---|---|---|
| Compact class: 95 to 180 CFM | ||||||
| CPS 110 KD8 | T4F | 95 | 100 | 58 to 125 | Kubota D902 | 8162061086 |
| T110 KD8 CS AC+WS | T4F | 95 | 100 | 58 to 125 | Kubota D902 | 8162104543 |
| CPS 175-100 T3 | T3 | 170 | 100 | 80 to 125 | Kubota V1505 | 8162010178 |
| CPS 185-100 KoD 15 in | T4F | 180 | 100 | 58 to 125 | Kohler KDI 1903 | 8972422001 |
| CPS 185-100 KoD CW 15 in | T4F | 180 | 100 | 58 to 125 | Kohler KDI 1903 | 8972426004 |
| Mid range: 238 to 400 CFM | ||||||
| CPS 250 MP KD8 | T4F | 238 / 189 | 100 / 150 | 58 to 155 | Kubota V2403 | 8162010023 |
| CPS 250 KD8 AC+WS | T4F | 238 / 189 | 100 / 150 | 58 to 155 | Kubota V2403 | 8162010070 |
| CPS 400-150 KoD | T4F | 400 / 375 | 100 / 150 | 58 to 175 | Kohler KDI 3404 | 8972422851 |
| CPS 400-200 MP KoD | T4F | 375 / 350 | 150 / 200 | 58 to 202 | Kohler KDI 3404 | 8972422853 |
| Large: 650 to 900 CFM | ||||||
| CPS 650 JD EB | T4F | Confirm configuration | Confirm configuration | Confirm configuration | John Deere 6068 | 8972422829 |
| CPS 900 JD EB | T4F | 867 / 808 / 750 | 100 / 125 / 150 | 58 to 175 | John Deere 6068 | 8972422826 |
| CPS 900-150 CUD | T4F | Confirm configuration | Confirm configuration | Confirm configuration | Cummins B6.7 | 8162010196 |
| High pressure: 699 to 1377 CFM | ||||||
| CPS 750-200 | T4F | 785 / 785 / 690 | 100 / 150 / 200 | 78 to 200 | Cummins B6.7 | 8162010147 |
| CPS 750-360 | T4F | 699 / 678 | 292 / 363 | 232 or 363 | Cummins B6.7 | 8162010204 |
| CPS 1150-360 | T4F | 1160 / 1120 / 1070 | 250 / 300 / 360 | 220 to 360 | Scania DC13 | 8162010182 |
| CPS 1400-500 | T4F | 1377 / 1228 | 320 / 508 | 319 to 508 | Scania DC16 | 8162070185 |
| Heavy duty: 1600 CFM | ||||||
| CPS 1600-150 PFF | T4F | 1600 / 1550 / 1500 | 100 / 125 / 150 | 72 to 175 | Scania DC13 | 8162010160 |
Reading the table: T4F is EPA Tier 4 Final. The CPS 175 is Tier 3, which matters if your site or contract calls for a certain tier. AC+WS means it has an aftercooler and water separator. MP means multi-pressure. Source: Chicago Pneumatic US price list, April 2026.
There are more factory-order and stock versions than the table shows, including CPS 650 and CPS 900 variants. Ask us what can be built and what’s in stock.
Sizing
Why the pressure range matters more than the nameplate
The pressure in a model name is one setting, not the limit. Every machine in the table can be adjusted across a range. If you only compare the number in the name, you may buy a bigger machine than the job needs.
One machine covers several pressures
A CPS 110 is sold as a 100 PSI machine, but it adjusts from 58 to 125 PSI. A CPS 750-200 runs anywhere from 78 to 200 PSI in 2 PSI steps. If your job needs 125 PSI, you may not need the next model up.
More pressure means less air
A CPS 400-150 gives 400 CFM at 100 PSI but 375 CFM at 150 PSI. Size the machine for the pressure you’ll actually run, not the biggest number on the sheet.
Emissions tier can decide the model
Most of the range is EPA Tier 4 Final. The CPS 175 is Tier 3. On public work, or if your contract names an emissions tier, that can rule a machine in or out before anything else.
Running several tools? Adding up each tool’s rating can make you buy too big or too small. Our air compressor sizing guide shows how to work it out.
Built For
What they’re used for
A portable diesel gives you air where there’s no power. Here’s what our customers use them for.
Sandblasting & Surface Prep
Steady, high-volume air for blasting, coating removal and surface prep on structures and equipment.
Road & Construction
Air for breakers, tampers and other air tools on roadwork, demolition and construction sites.
Pipeline & Drilling
High pressure air for pipeline work, drilling and other jobs that need more than normal shop pressure.
Utility & Plant Maintenance
Towable air for utility crews and plant shutdowns when you need air for a few days or weeks.
FAQ
Common Questions
-
What size portable diesel air compressor do I need?
It depends on your tools and the pressure they need. Chicago Pneumatic portables run from 95 to 1600 CFM, mostly at 100 to 200 PSI, with high pressure models up to 508 PSI. Tell us the job, like sandblasting, breakers or drilling, and we’ll size it for you. Call (844) 310-8665.
-
How much CFM do I need for sandblasting?
Sandblasting uses a lot of air, and how much depends on nozzle size and pressure. Small nozzles can run on the compact class (95 to 180 CFM). Larger nozzles and all-day blasting need the mid range (238 to 400 CFM) or bigger. Tell us your nozzle size and how long you blast and we’ll match the compressor. See our air compressor sizing guide for more.
-
Are these diesel or electric compressors?
They’re diesel. The engine make depends on the model and version, and the range uses several makes. We confirm the engine, emissions setup and parts support for the exact unit we quote.
-
Do you deliver portable compressors?
Yes, across Southern California and the Las Vegas metro. Tell us the model and your site and we’ll confirm availability and delivery.
-
Do you sell or rent these compressors?
We sell them. We’re an authorized Chicago Pneumatic distributor, so you own the machine. We don’t rent.
Need a portable diesel compressor quote?
Tell us the CFM, the pressure or the job and we’ll follow up within one business day with the right model, pricing and availability. Call (844) 310-8665.
